HDP1100 Wide-Format Roll to Book Block Digital Line

Equipment Introduction

The HDP1100 Wide-Format Roll to Book Block Digital Line is a heavy-duty, automated solution specifically engineered for wide-format digital printing. Accommodating a maximum web width of up to 1100mm, it perfectly matches the printing formats of most mainstream digital presses, enabling a seamless workflow from printing to post-press finishing. Operating at speeds of up to 200 m/min, the system seamlessly integrates unwinding, dual plow folding (4, 6, or 8-page signatures), precision cutting, side gluing, and stacking into a continuous automated process. At its core, the system features the HDP DSD Dual Star Wheel Delivery unit; this starwheel stacking technology ensures extremely stable signature separation and delivery, providing robust "Book-of-One" manufacturing capabilities. Combined with customizable features such as dynamic perforation and edge trimming, this high-capacity, flexible production line can easily adapt to continuous changes in book block thickness with zero downtime, making it the ultimate post-press finishing solution for wide-format web-fed printing environments.

HDP TST Digital Three Side Trimmer

HDP TST Digital Three Side Trimmer for Muliti-Books Trimming

HDP1100 Roll to Book Block Line at Tianjin Hongbo Ruite

Tech specifications

  • Roll Diameter
  • 85–1300 mm
  • Paper Weight
  • 40–150 gsm
  • Web Width
  • 330–1100 mm
  • Production Speed
  • 10–200 m/min
  • Signature Width
  • 130–254 mm
  • Signature Length
  • 200–356 mm
  • Stacking Height
  • 120 mm
  • Folding Pages
  • 4/6/8P
  • Number of Folding Plates
  • 2
  • Power Supply
  • 400 VAC
  • Power
  • 28 kW
  • Compressed Air
  • 6 bar, 3 L/min
  • Working Humidity
  • 15–85%
  • Working Temperature
  • 5–40°C
  • Machine Weight
  • 13 T
  • Dimensions
  • 16734 × 2383 × 1856mm (L × W × H)

Dimensions & Layout

Component Equipment

HDP UW1100 Unwinder

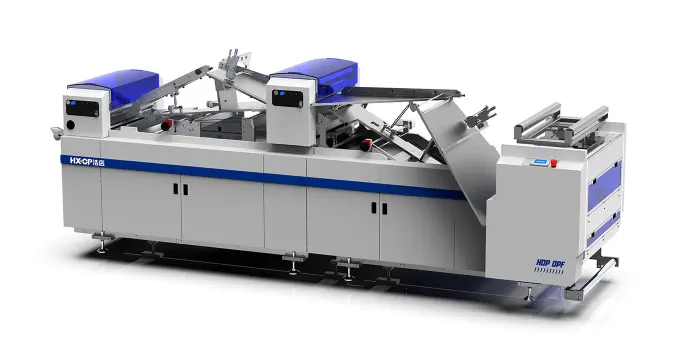

HDP DPF1100 Dual Plowfolder
HDP CS520 Cutter
HDP DSD Dual Star Wheel Delivery
READY TO FIND
THE RIGHT MACHINE?

Please provide your contact details and message.
Our sales experts will reach out to you shortly.

Tech Highlights

for wide-format web-fed printin

1100 Wide-Format Roll-to-Book-Block Production Line is a heavy-duty, automated solution specifically engineered for wide-format digital printing. Accommodating a maximum web width of up

book block thickness with zero downtime

formats of most mainstream digital presses, enabling a seamless workflow from printing to post-press finishing. Operating at speeds of up to 200 m/min, the system seamlessly integrates unwinding, dual plow folding (4, 6, or 8-page signatures), precision cutting, side gluing, and stacking into a continuous automated process. At its core, the system features the HDP DSD Dual Star Wheel Delivery unit; this starwheel stacking technology ensures extremely stable

stacking technology ensures extremely stable

signature separation and delivery, providing robust "Book-of-One" manufacturing capabilities. Combined with customizable features such as dynamic perforation and edge trimming, this high-capacity, flexible production line can easily adapt to continuous changes in book block thickness with zero downtime, making it the ultimate post-press finishing solution for wide-format

Value & Success Insights

Why Plow Folding Is Better Suited to Print-on-Demand Book Production

EXPLORE MORE SOLUTIONS

READY TO FIND
THE RIGHT MACHINE?

Please provide your contact details and message.
Our sales experts will reach out to you shortly.

FREQUENTLY ASKED QUESTIONS

Q: What is HDP?
A: HDP is a specialized digital finishing brand under HXCP Machinery, focused on complete post-press solutions for digitally printed rolls. We help convert printed paper rolls into finished books through cutting, folding, sewing, perfect binding, saddle stitching, hardcover binding, lay-flat binding, and other bookbinding processes. HDP is designed to support true print-on-demand production from one book upward.
Q: What is your warranty policy?
A: We provide a standard 12-month warranty from the date of installation. During the warranty period, we offer free replacement parts for manufacturing defects and provide lifelong online technical support.
Q: What are HDP’s competitive advantages?
A: HDP is one of China’s leading manufacturers dedicated to digital finishing technology. Since 2024, we have developed and delivered advanced digital finishing systems to customers worldwide. With self-developed patented technologies such as dynamic folding, HDP helps traditional bookbinding companies enter digital finishing with lower investment and higher flexibility. We are also one of the few manufacturers able to provide a full range of digital binding solutions, including perfect binding, saddle stitching, thread sewing, lay-flat binding, and hardcover binding.
Q: Where is HDP located?
A: HDP is backed by HXCP Machinery, with its headquarters and manufacturing facilities located in Dongguan, Guangdong, China. In the United States, HDP operates through HDP Americas Inc. in Upland, California. Located in Southern California within the Greater Los Angeles area, the 400-square-meter facility serves as a regional showroom, technical service center and spare parts hub supporting customers throughout the Americas. Customers are warmly welcome to visit HDP in either China or the United States.
Q: How can I contact HDP?
A: You can contact us via WhatsApp at +86 186 1055 1470, email us at HXCPCHINA@gmail.com, or submit an inquiry directly through our website. Our sales team will respond promptly.
Q: What is the relationship between HDP, HXCP, and ChinaPrintech?
A: HXCP Machinery is the group company, founded in 1993, and is one of China's leading manufacturers and solution providers in post-press bookbinding equipment. ChinaPrintech, established in 2020, serves as the group's global export and marketing platform, offering one-stop bookbinding equipment solutions. HDP, established in 2024, is a specialized sub-brand focused on the development, manufacturing, and sales of digital finishing equipment and solutions. Both HDP and ChinaPrintech are brands under HXCP Machinery.
Q: What products and solutions does HDP offer?
A: HDP provides complete digital finishing equipment and integrated solutions for roll-fed digital printing applications. Our equipment includes unwinders, plow folders, dynamic cutters, dynamic folders, digital sewing systems, digital book block preparation lines, digital casing-in machines, and related automation modules. Our solutions include roll-to-book-block, roll-to-perfect-binding, roll-to-saddle-stitching, roll-to-hardcover-binding, and other customized digital book production lines.
Q: What payment methods do you accept?
A: We mainly accept T/T and L/C at sight. For most orders, the standard payment term is a deposit by T/T, with the balance paid before shipment. Specific payment terms can be confirmed based on the order details and project requirements.
Q: What is the difference between purchasing through a local agent and buying directly from HDP?
A: Whether you purchase through an authorized local agent or directly from HDP, you will receive competitive and consistent pricing, as well as standardized service support. However, we generally recommend purchasing through our certified local agents when available, as they can provide faster communication in your local language and time zone, easier access to spare parts, and more efficient on-site service. HDP-certified agents are reviewed regularly to ensure reliable and continuous local support.
