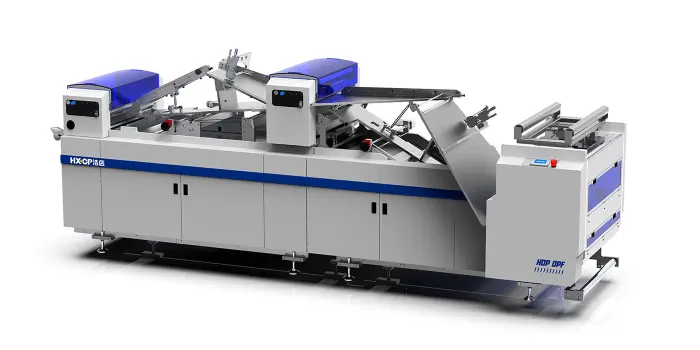

HDP700 Roll-to-Book-Block Digital Line

Equipment Introduction

The HDP700 Roll-to-Book-Block Digital Line is a fully automated, modular solution designed for continuous Book-of-One production from digitally printed rolls. Supporting web widths up to 700 mm and production speeds up to 200 m/min, it integrates unwinding, dual plow folding, precision cross-cutting, side gluing and book block stacking in one synchronized workflow. The line produces 4-, 6- or 8-page signatures, while the HDP DSD Dual Star Wheel Delivery ensures stable signature separation and continuous stacking at up to 550 book blocks per hour. Optional dynamic cross perforation, edge trimming and center slitting modules provide additional production flexibility, allowing the system to process variable book block thicknesses without stopping for changeovers.

Technical Specifications

  • Unwinding Roll Diameter
  • 85–1,300 mm
  • Paper Weight
  • 40–150 gsm
  • Web Width
  • 330–700 mm
  • Production Speed
  • 10–200 m/min
Production Capacity to 550 book blocks/hour
  • Signature Width
  • 130–254 mm
  • Signature Length
  • 178–356 mm
  • Folding Format
  • 4/6/8 pages
  • Number of Folding Plates
  • 2
  • Max. Stacking Height
  • 120 mm
  • Power Supply
  • 400 V AC
  • Installed Power
  • 25 kW
  • Compressed Air
  • 6 bar, 3 L/min
  • Working Temperature
  • 5–40 °C
  • Working Humidity
  • 15%–85%
  • Dimensions (L × W × H)
  • 16,734 × 2,383 × 1,856 mm
  • Machine Weight
  • 11,000 kg

Dimensions & Layout

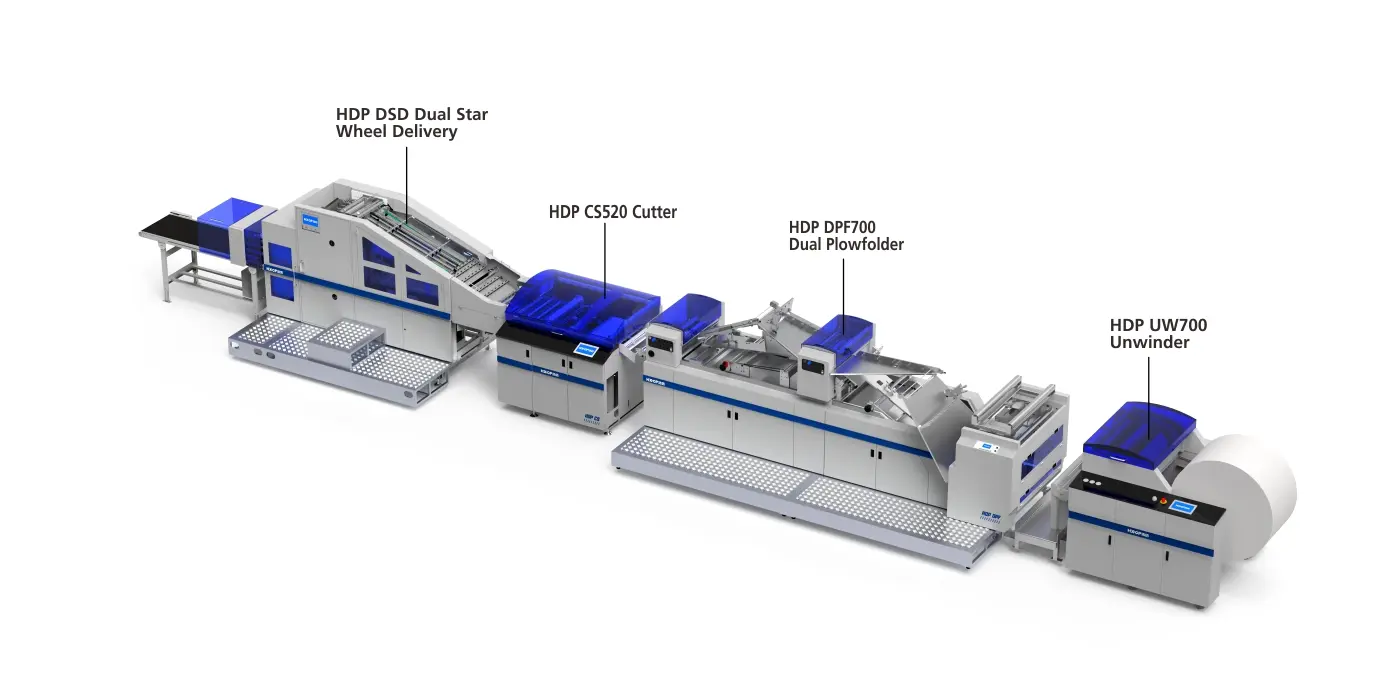

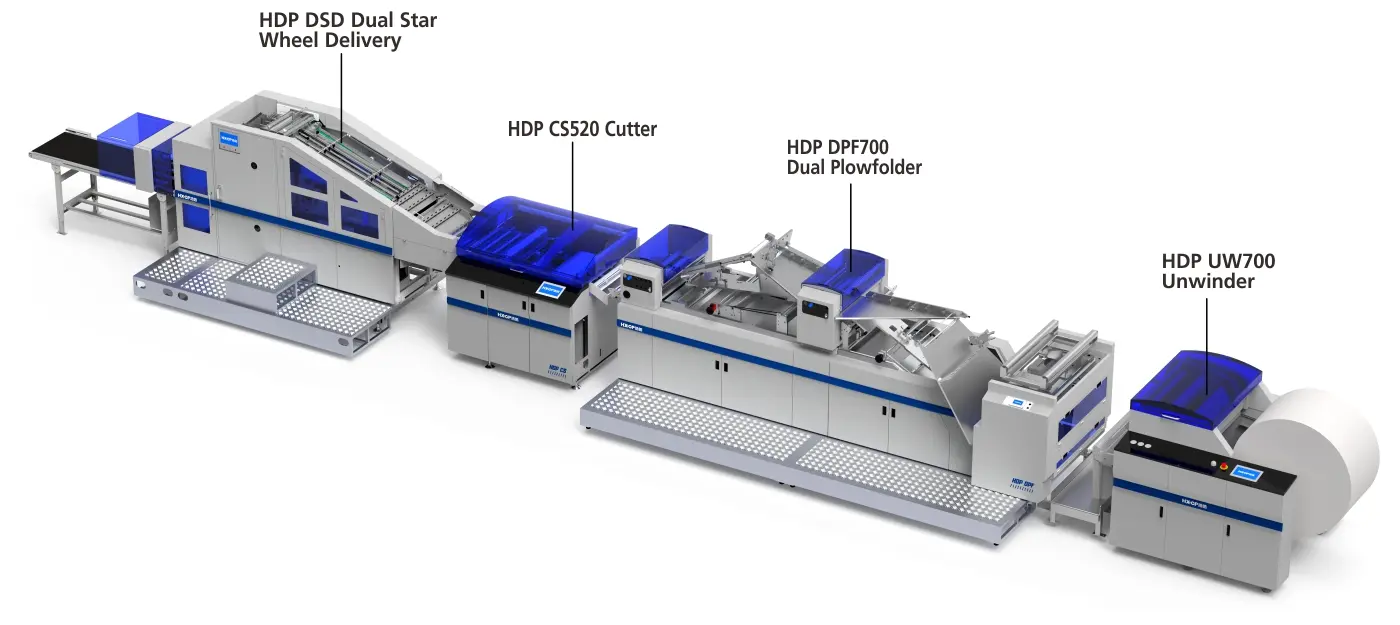

Component Equipment

HDP UW700 Unwinder
HDP DPF700 Dual Plowfolder
HDP CS520 Cutter
HDP DSD Dual Star Wheel Delivery
