HDP Sheet-to-Collator-to-Saddle-Stitching Digital Line

Equipment Introduction

The HDP Sheet-to-Collator-to-Saddle-Stitching Digital Line is a fully automated solution that converts printed flat sheets directly into finished saddle-stitched booklets. The HDP200 Digital Collating Feeder performs precise half-folding, sequential gathering and saddle-style collating, while barcode verification ensures accurate matching between the cover and inner pages. The gathered signatures are transferred automatically to the HDP SS4500 Digital Saddle Stitching Unit for cover feeding, wire stitching and inline three-side trimming. Integrating folding, collating, cover inserting, stitching and trimming in one synchronized workflow, the line provides efficient and flexible production of personalized brochures, examination booklets, manuals, direct mailers and other short-run or variable-page-count products.

Technical Specifications

  • Max. Feeder Sheet Size
  • 470 × 350 mm
  • Min. Feeder Sheet Size
  • 210 × 150 mm
  • Folding Format
  • 4 pages
  • Paper Weight
  • 60–180 gsm
  • Max. Cover Size (W × L)
  • 470 × 350 mm
  • Min. Cover Size (W × L)
  • 210 × 150 mm
  • Max. Booklet Size Before Trimming (W × L)
  • 235 × 350 mm
  • Min. Booklet Size Before Trimming (W × L)
  • 105 × 150 mm
  • Max. Saddle-Stitching Thickness
  • 5 mm
  • Stitching Distance
  • 60–150 mm
  • Mechanical Speed
  • Up to 2,900 booklets/hour (A4, 64 pages per booklet)
  • Changeover Time
  • 5 minutes
  • Cover Feeder
  • 1 integrated cover feeder
  • Signature Gathering Device
  • Yes
  • Cover-to-Content Barcode Matching
  • Yes
  • Power Supply
  • 380 V AC
  • Installed Power
  • 28 kW
  • Compressed Air
  • 6 bar, 2 L/min
  • Working Temperature
  • 5–40 °C
  • Working Humidity
  • 15%–85%
  • Dimensions (L × W × H)
  • 7,600 × 5,500 × 1,500 mm
  • Machine Weight
  • 3,000 kg

Dimensions & Layout

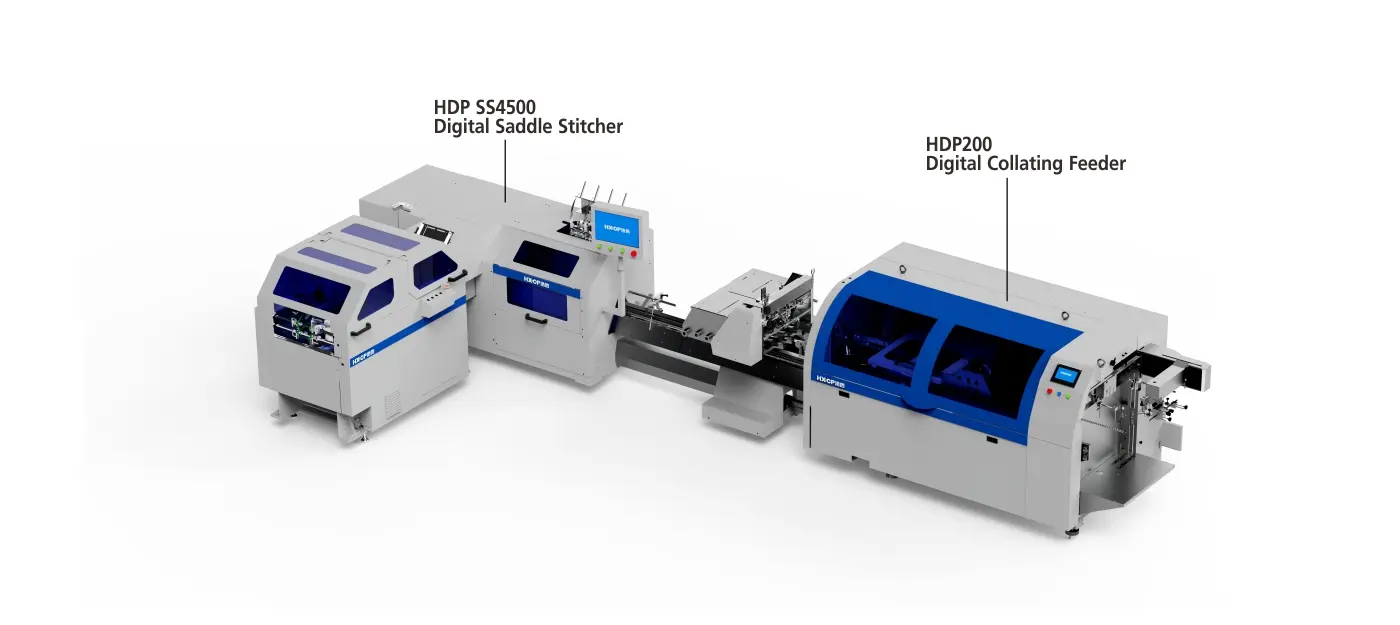

Component Equipment

HDP200 Digital Collating Feeder
HDP SS4500 Digital Saddle Stitcher
