HDP Roll to Dynamic Folding Digital Line

Equipment Introduction

The HDP1100 Roll to Dynamic Folding Digital Line is a compact, fully automated inline solution that converts a continuous printed paper roll into collated, bundled signatures compatible with a wide range of downstream binding processes. The HDP UW1100 Unwinder feeds the web into the HDP SPF1100 Single Plowfolder for longitudinal creasing and pre-perforation, followed by the HDP CD520 Dynamic Cutter, which reads barcode data to execute variable-length cross-cuts and automatically ejects setup waste. The HDP DFU660 Dynamic Folder, supported by the HXC2 Independent Folding Knife, switches folding paths on the fly via VDP barcode recognition, achieving seamless 4- or 8-page dynamic jumps (e.g., 8P to 12P or 16P to 24P) with zero downtime — limiting blank pages to no more than 3 per book and handling tail signatures automatically. The sequentially ordered signatures are then vertically stacked and strapped by the HX500 Vertical Stacker and Bundling Delivery for immediate downstream transfer. The bundled output is compatible with digital finishing lines — including the HDP200 Digital Collating Feeder, HDP SEW Digital Thread Sewing Machine, HDP SS4500 Digital Saddle Stitcher, and digital perfect binders — as well as conventional equipment such as thread sewing machines, wiro-o binders, traditional perfect binders, and saddle stitchers. By transforming variable digital print content into properly folded multi-page signatures, the line bridges digital and traditional post-press production, serving as the first and most versatile entry point in any digital book manufacturing workflow.

Tech specifications

  • Max Unwinding Width
  • 1100 mm
  • Max Cutting Width
  • 520 mm
  • Max Folding Size
  • 520 × 1040 mm
  • Paper Weight
  • 40–210 gsm
  • Mechanical Speed
  • 200 m/min
  • Dimensions
  • 12000 × 3300 × 1500 mm (L × W × H)
  • Power Supply
  • 380 V AC
  • Working Humidity
  • 15%–85%
  • Max Unwinding Diameter
  • 1300 mm
  • Variable Folding
  • 8, 12, 16, 24, 32 pp
  • Min Folding Size
  • 50 × 120 mm
  • Changeover Time
  • 10 min
  • Machine Weight
  • 7500 kg
  • Power
  • 35 kW
  • Compressed Air
  • 6 bar, 2 L/min
  • Working Temperature
  • 5–40 °C

Dimensions & Layout

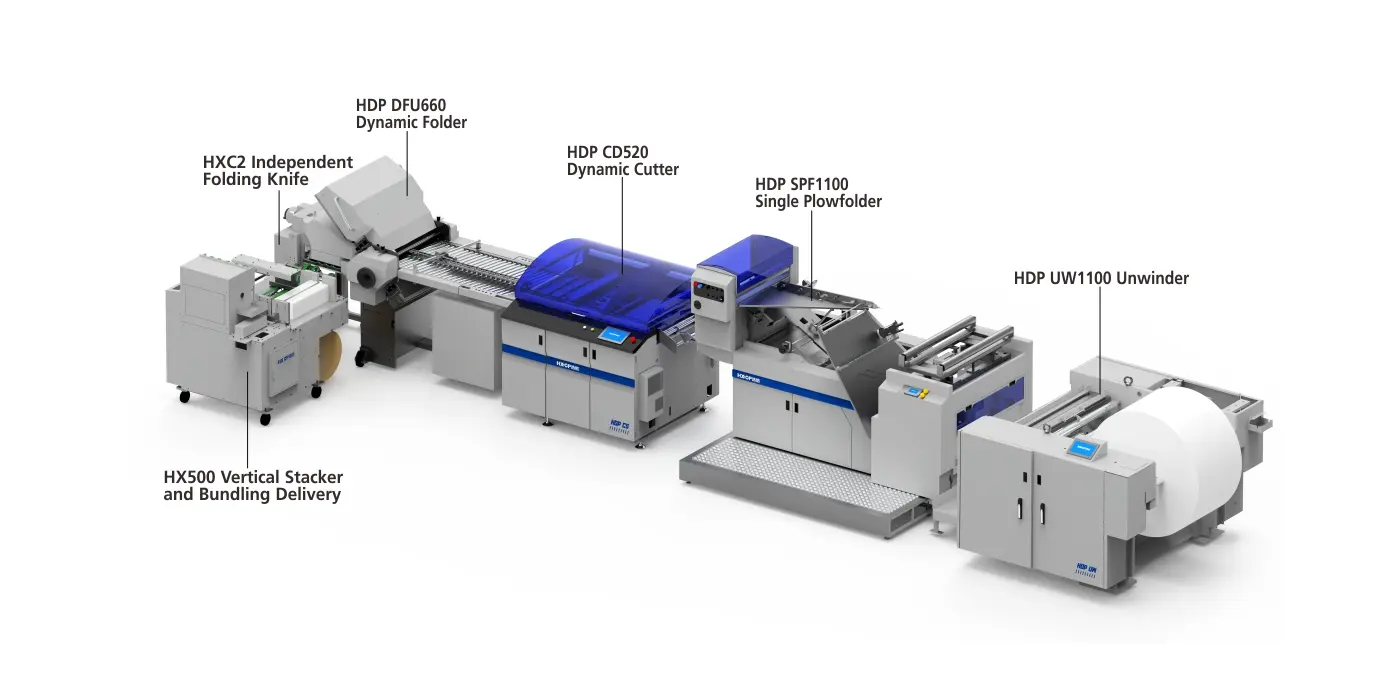

Component Equipment

HDP UW1100 Unwinder
HDP SPF1100 Single Plowfolder
HDP CD520 Dynamic Cutter
HDP DFU660 Dynamic Folder
HXC2 Independent Folding Knife
HX500 Vertical Stacker and Bundling Delivery
READY TO FIND
THE RIGHT MACHINE?

Please provide your contact details and message.
Our sales experts will reach out to you shortly.

HDP700 Roll to Dynamic Folding Digital Line

The HDP700 Roll to Dynamic Folding Digital Line is a compact, fully automated inline solution that converts a continuous printed paper roll into collated, bundled signatures compatible with a wide range of downstream binding processes. The HDP UW700 Unwinder feeds the web into the HDP SPF700 Single Plowfolder for longitudinal creasing and pre-perforation, followed by the HDP CD520 Dynamic Cutter, which reads barcode data to execute variable-length cross-cuts and automatically ejects setup waste. The HDP DFU660 Dynamic Folder, supported by the HXC2 Independent Folding Knife, switches folding paths on the fly via VDP barcode recognition, achieving seamless 4- or 8-page dynamic jumps (e.g., 8P to 12P or 16P to 24P) with zero downtime — limiting blank pages to no more than 3 per book and handling tail signatures automatically. The sequentially ordered signatures are then vertically stacked and strapped by the HX500 Vertical Stacker and Bundling Delivery for immediate downstream transfer. The bundled output is compatible with digital finishing lines — including the HDP200 Digital Collating Feeder, HDP SEW Digital Thread Sewing Machine, HDP SS4500 Digital Saddle Stitcher, and digital perfect binders — as well as conventional equipment such as thread sewing machines, wiro-o binders, traditional perfect binders, and saddle stitchers. By transforming variable digital print content into properly folded multi-page signatures, the line bridges digital and traditional post-press production, serving as the first and most versatile entry point in any digital book manufacturing workflow.

Component Equipment

HDP UW700 Unwinder
HDP SPF700 Single Plowfolder
HDP CD520 Dynamic Cutter
HDP DFU660 Dynamic Folder
HXC2 Independent Folding Knife
HX500 Vertical Stacker and Bundling Delivery
