HDP700 Roll to Collator to Saddle Stitching Digital Line

Equipment Introduction

The HDP700 Roll to Collator to Saddle Stitching Digital Line is a highly efficient, single-pass system that converts paper rolls directly into finished saddle-stitched booklets, making it ideal for producing magazines, photo albums, manuals, exercise books, and brochures. The workflow begins with the HDP UW700 Unwinding Unit continuously feeding the paper web into the HDP CS520 Cutting Unit, which precisely cross-cuts the web into individual flat sheets at preset dimensions. These sheets are immediately sequenced and accumulated in the HDP200 Digital Collating Feeder, where the Cover Inserting Unit seamlessly feeds and aligns a cover with each assembled book block. The HDP SS4500 Digital Saddle Stitching Unit then drives wire staples through the spine to bind the pages, followed by the Three-Knife Trimming Unit, which accurately trims the three unbound edges to their final size. Operating in fully synchronized linkage, this streamlined solution significantly reduces manual intervention, waiting times, and material waste from roll to finished product.

Tech specifications

  • Max Unwinding Width
  • 700 mm
  • Max Cutting Width
  • 520 mm
  • Max Cover Size (W×L)
  • 470 × 350 mm
  • Max Size Before Cutting (W×L)
  • 235 × 350 mm
  • Paper Weight
  • 60–180 gsm
  • Max Saddle Stitching Thickness
  • 5 mm
  • Mechanical Speed
  • 2900 books/h (A4 size 64PP/book)
  • Dimensions
  • 13600 × 5500 × 1500 mm (L × W × H)
  • Power Supply
  • 380 V AC
  • Working Humidity
  • 15%–85%
  • Cover Feeder
  • YES (Equipped with 1 cover feeder)
  • Cover and Inner Pages Barcode Matching
  • YES
  • Max Unwinding Diameter
  • 1300 mm
  • Folding
  • 4 pp
  • Min Cover Size (W×L)
  • 210 × 150 mm
  • Min Size Before Cutting (W×L)
  • 105 × 150 mm
  • Saddle Stitching Distance
  • 60–150 mm
  • Changeover Time
  • 10 min
  • Machine Weight
  • 3000 kg
  • Power
  • 39 kW
  • Air Demand
  • 6 bar, 2 L/min
  • Working Temperature
  • 5–40 °C
  • Signature Gathering Device
  • YES

Dimensions & Layout

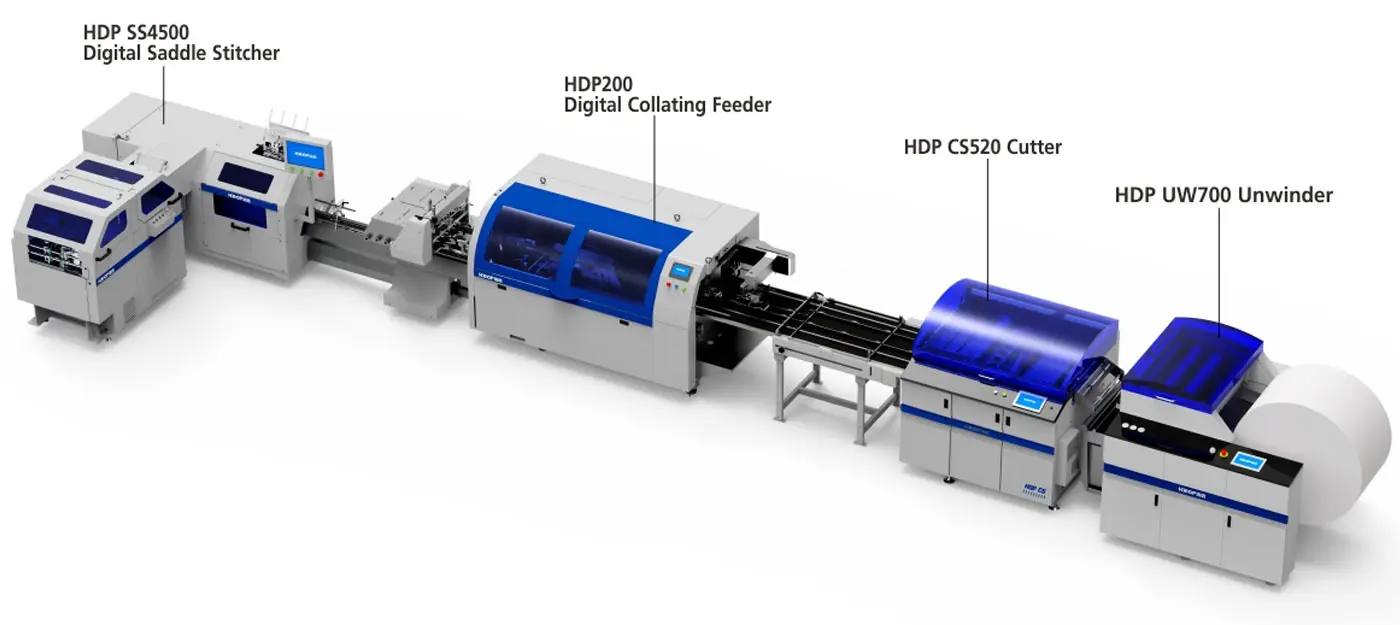

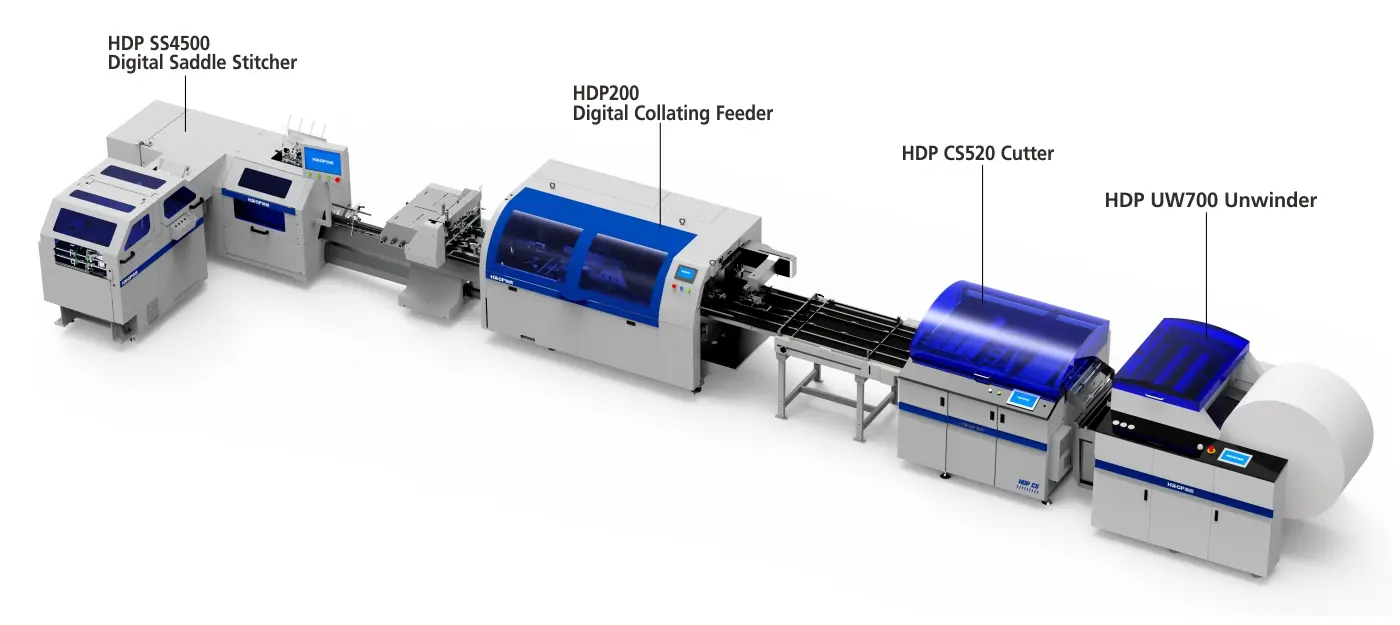

Component Equipment

HDP UW700 Unwinder
HDP CS520 Cutter
HDP200 Digital Collating Feeder
HDP SS4500 Digital Saddle Stitcher
