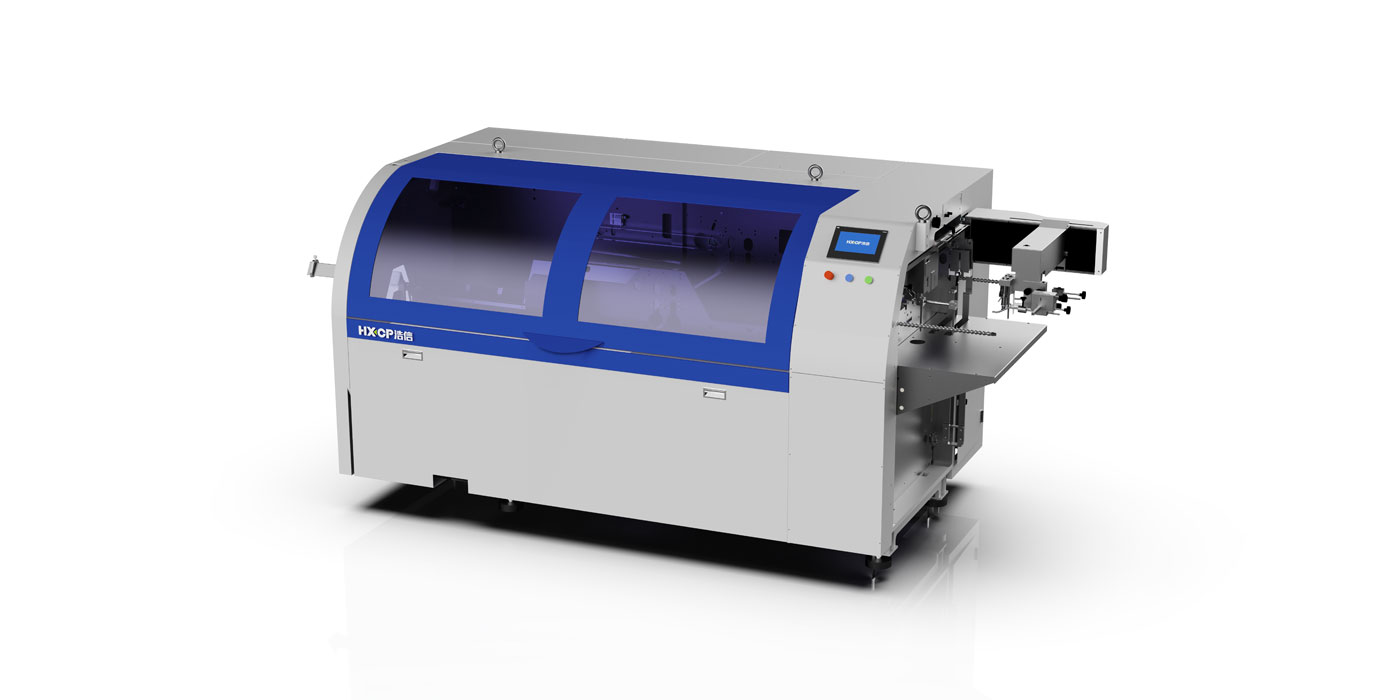

HDP200 Digital Collating Feeder

EQUIPMENT INTRODUCTION

The HDP200 Digital Collating Feeder processes both individual sheets and pre-folded signatures, combining half-folding and saddle-style collating to produce accurately sequenced book blocks for downstream binding. Two pairs of independently driven feeding cylinders provide high-speed, continuous feeding, while a double ball-bearing alignment table ensures precise sheet registration. Ultrasonic double-sheet detection stops the machine immediately in the event of a misfeed. The integrated creasing and cross-folding sections automatically adjust to the paper and convert individual sheets into 4-page signatures, with controlled belt transport and adjustable braking for stable handling across different paper types. Folded signatures are pressed, checked and transferred to a variable collecting station before being positioned on the saddle. The HDP200 can operate inline with a digital book sewing machine or saddle stitcher for continuous production, or as a standalone collating system for newspapers, examination booklets, albums and other multi-section products.

Technical Specifications

  • Maximum Sheet Size(L×W)
  • 640×420 mm
  • Minimum Sheet Size(L×W)
  • 200×150 mm
  • Paper Weight
  • 60–157 gsm
  • Maximum Operating Speed
  • 80 m/min
  • Power Supply
  • 380 V AC
  • Machine Power
  • 2 kW
  • Compressed Air Requirement
  • 6 bar, 2 L/min
  • Operating Relative Humidity
  • 15%–85%
  • Operating Temperature
  • 5–40 °C
  • Dimensions(L×W×H)
  • 2,900×1,410×1,730 mm
  • Net Weight
  • 1,000 kg

INTEGRATED SOLUTIONS

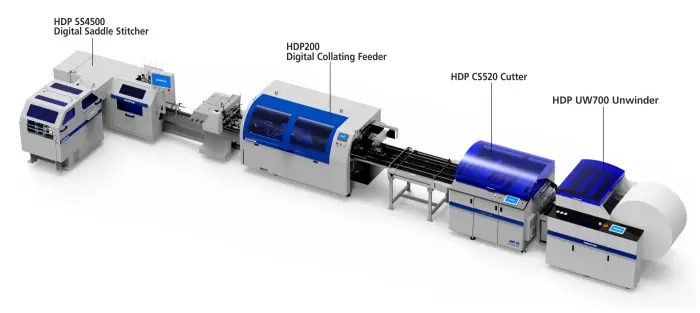

HDP700 Roll to Collator to Saddle Stitching Digital Line
