In the era of Print-on-Demand (POD) and ultra-short-run production, post-press finishing must be as agile as the digital presses that feed it. Traditional trimmers often become bottlenecks due to lengthy setup times and manual adjustments. The HDP TKT Digital Three Knife Trimmer is engineered to eliminate these barriers.
Designed as the ultimate automated trimming solution for modern bookbinding companies, the HDP TKT delivers true "book-of-one" capabilities. With its robust hydraulic drive, intelligent barcode scanning, and seamless inline integration, it offers unmatched precision and efficiency for a wide variety of book formats.

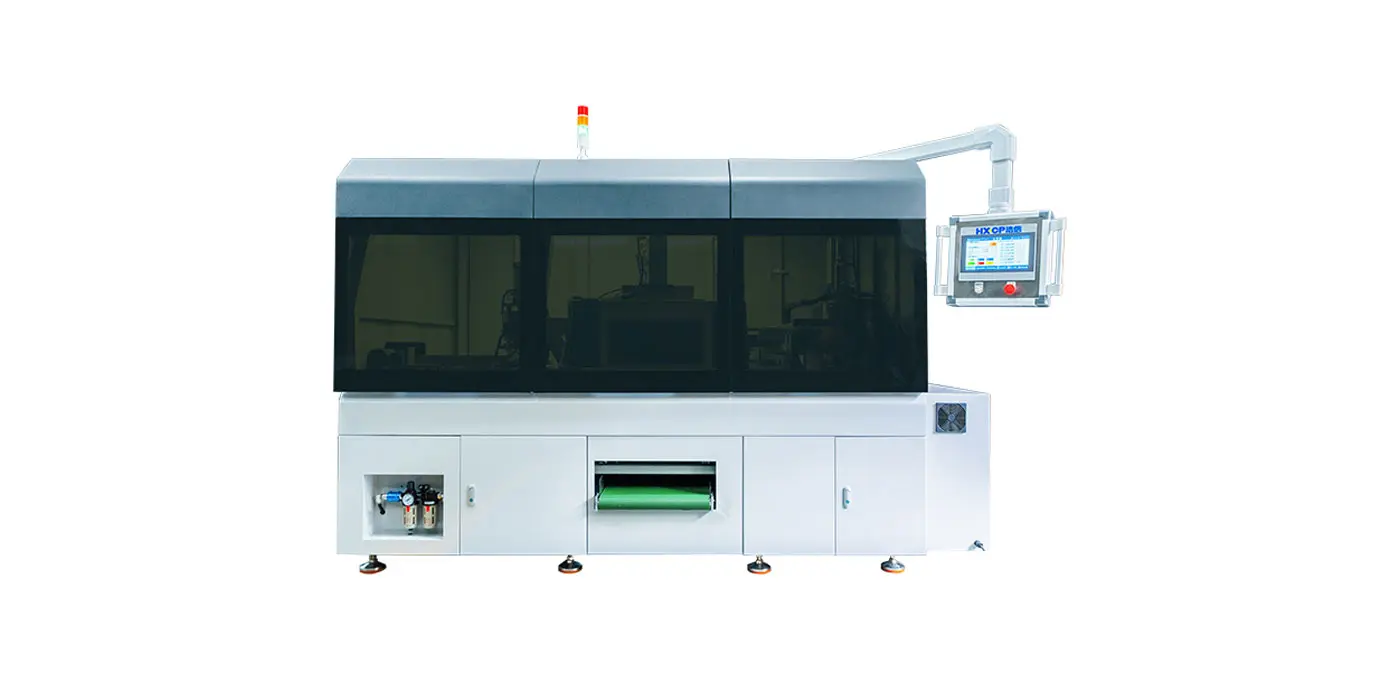

HDP TKT Digital Three-Knife Trimmer
Core Technological Highlights
1. True "Book-of-One" Automation & Lightning-Fast Changeovers
The standout feature of the HDP TKT is its zero-makeready design. Setup is fully automated. Operators can initiate rapid job changeovers via direct data input on the intuitive touchscreen or through intelligent barcode scanning.
When operating in "book-of-one" mode, the machine automatically retrieves size data and adjusts the fully servo-controlled mechanisms on the fly, achieving an impressive continuous changeover speed of up to 800 books per hour without manual intervention.
2. Uncompromising Hydraulic Precision
For high-end bookbinding, cutting accuracy is non-negotiable. The HDP TKT is hydraulically driven, ensuring maximum pressure stability and cutting accuracy (±0.5mm). Books are automatically and precisely aligned before being firmly pressed directly in the cutting area. The trimming sequence is strictly optimized: the middle knife performs the front trim first, followed by the left and right knives executing the head and tail trims.
3. Ultimate Versatility Across Book Formats
Whether processing delicate art books or thick children's materials, the HDP TKT handles it all.
It is specifically optimized for:
Photo Albums & Children's Board Books (minimum thickness: 7mm)
Hardcover Books (minimum thickness: 10mm)
Softcover & Glue-Bound Books
Premium Optional Upgrades:
Dual-Head Round Corner Trimmer: Automatically transfers the trimmed book to a dedicated station, cutting both corners simultaneously for a flawless, child-safe finish.
Anti-Tear / Explosion-Proof Paper Function: Prevents edge cracking and paper bursting, ensuring pristine edges even on heavily coated or brittle digital substrates.
4. Seamless Inline Integration

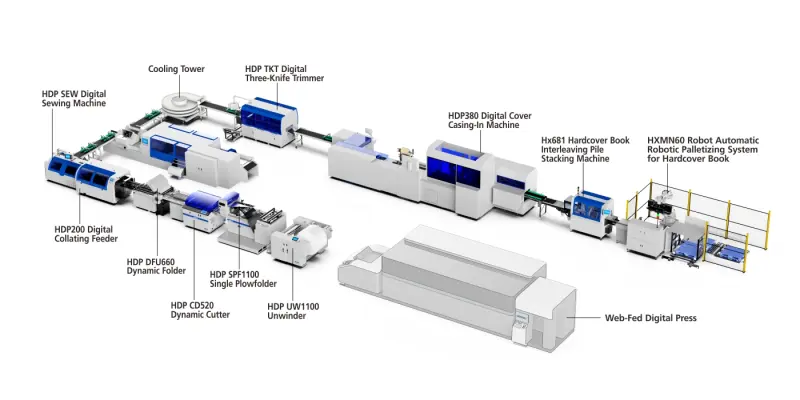

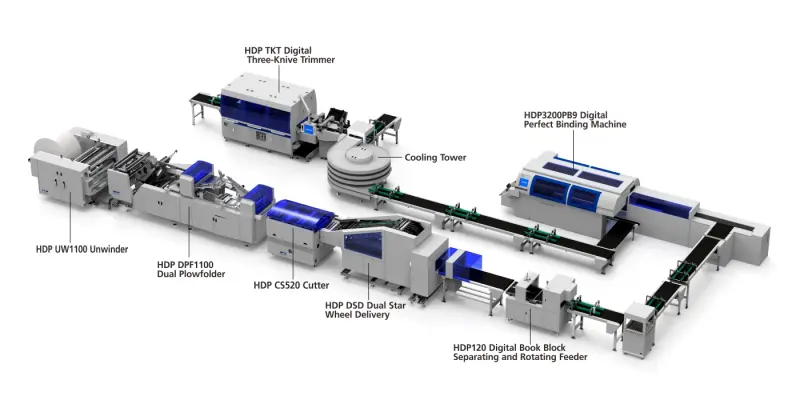

The HDP TKT is built to scale with your production floor. It operates seamlessly as a hand-fed, stand-alone unit for smaller runs, but its true power is unlocked when connected to an automatic feeder. This allows for complete inline integration with upstream digital printing or binding equipment, transforming post-press finishing into a continuous, hands-free production line.
Intelligent Production Workflow
The machine's internal architecture is designed for maximum efficiency and waste management:
- Smart Infeed & Alignment: Books are transported manually or via auto-feeder to the waiting station, where pneumatic pushers and positioning mechanisms automatically square the product.
Middle Knife (Front Trim): The book is clamped securely by heavy-duty jacks, and the front edge is trimmed precisely to the screen-set dimensions.
Servo-Driven Transfer: A dual-link mechanical pusher smoothly transfers the book to the next station.
Left/Right Knives (Head & Tail Trim): Fully servo-controlled side knives adjust automatically to the new dimensions and trim the top and bottom.
Automated Waste Discharge: Paper scraps from all three knives are directed to an integrated conveyor belt for easy, continuous removal, preventing jamming.
Round Cornering (Optional): The book is moved to the final processing station where servo-controlled dual heads apply precise round corners.
Output Delivery: Finished, retail-ready books are smoothly exported via the outfeed conveyor.

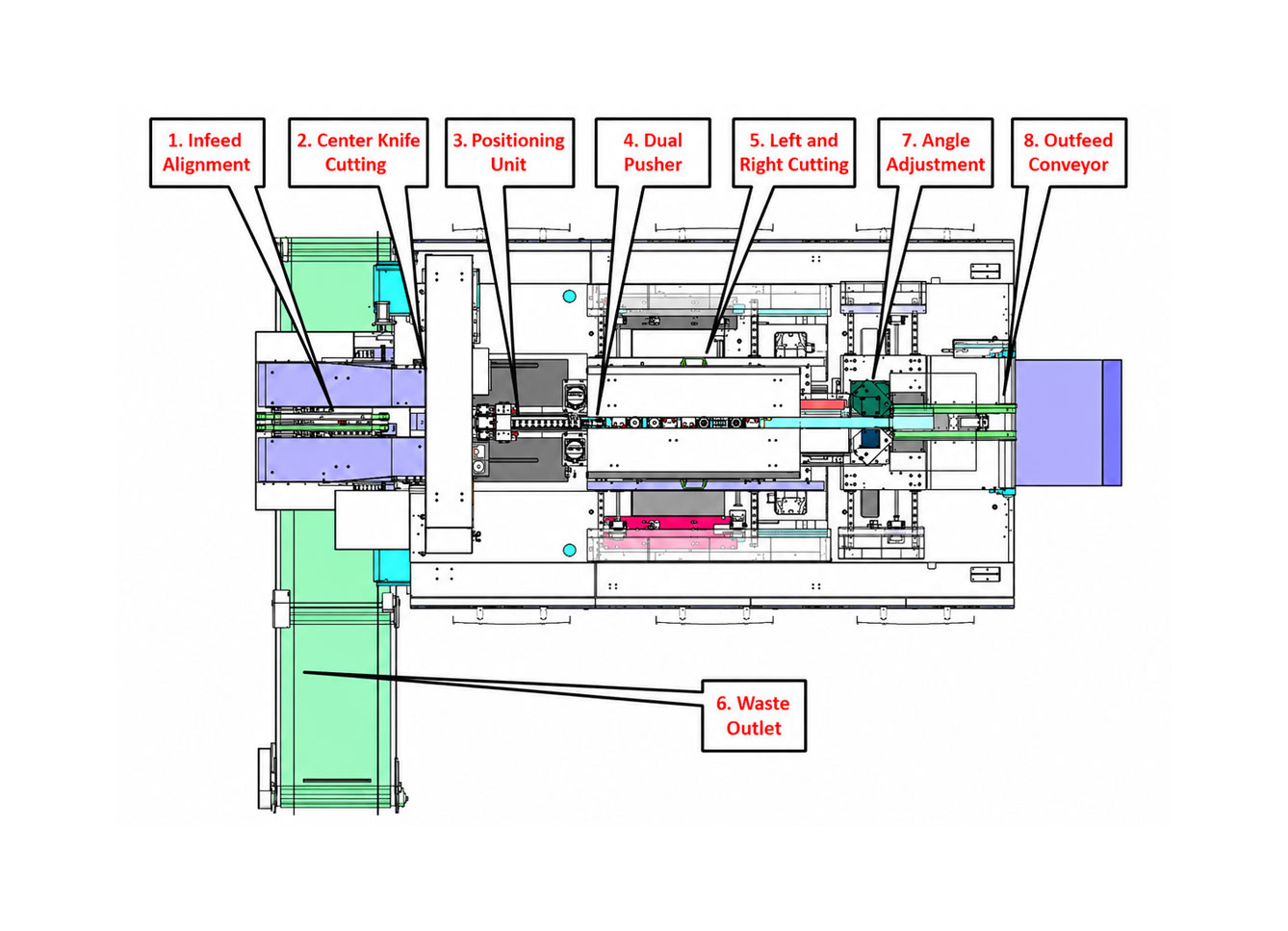

HDP TKT Digital Three Knife Trimmer's Structure and Functions
Every aspect of the machine’s internal architecture has been thoughtfully engineered to ensure a smooth and efficient production process while meeting the demands of digital finishing for instant job changeovers and flexible production.
Infeed Alignment: The product is conveyed or manually loaded into the infeed position, where the pusher and positioning unit automatically align it for processing.
Center Knife Cutting: After alignment, the product is securely pressed and trimmed by the center knife. The required cutting size can be set directly through the control interface.
Positioning Unit: The positioning unit accurately locates the product and ensures correct alignment before it enters the next process.
Left and Right Cutting: Once center cutting is complete, two independent servo-driven transfer mechanisms automatically move the product to the left and right cutting stations for side trimming. The knife positions are automatically adjusted by servo control according to the product size.
Waste Outlet: Cutting waste generated during center and side trimming is automatically conveyed to the waste outlet. The outlet should be cleaned regularly to prevent excessive waste accumulation and conveyor blockage.
Angle Adjustment: After side trimming, the dual independent servo-driven transfer mechanisms move the product to the angle-adjustment station. The adjustment position is automatically controlled according to the product size.
Outfeed Conveyor: After all processing steps are completed, the finished product is automatically discharged through the outfeed conveyor.
Elevate Your Digital Finishing Today
The HDP TKT Digital Three Knife Trimmer is more than just a cutting machine; it is a strategic investment in reducing labor costs, eliminating bottlenecks, and delivering premium quality to your customers faster than ever before. Contact the HDP team today to discuss inline integration options tailored to your smart-factory setup.
